Selector Lever Cable Adjustment

Automatic Transmission External Controls

Source configuration appliesSource reference 9,099HTML edition
← Chapter contentsManual collection

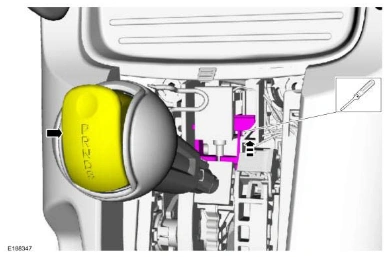

Selector Lever Cable Adjustment — original illustration 1, reference 9099Original colors & callouts · Select to enlarge

4. Start the engine.

5. Snap the bezel into place.

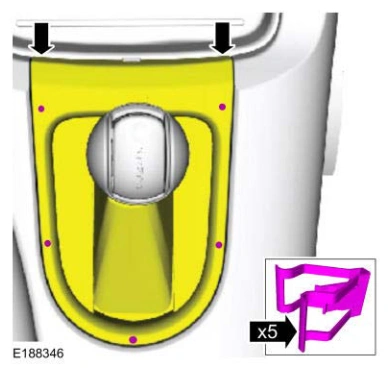

Selector Lever Cable Adjustment — original illustration 2, reference 9099Original colors & callouts · Select to enlarge

GENERAL PROCEDURES > SELECTOR LEVER CABLE ADJUSTMENT

Adjustment

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Position the shifter lever in DRIVE.

Ford_Mustang_all_2015-2017.pdf · source reference 9099
