Selector Lever Cable Adjustment — Automatic Transmission External Controls · Reference 9101

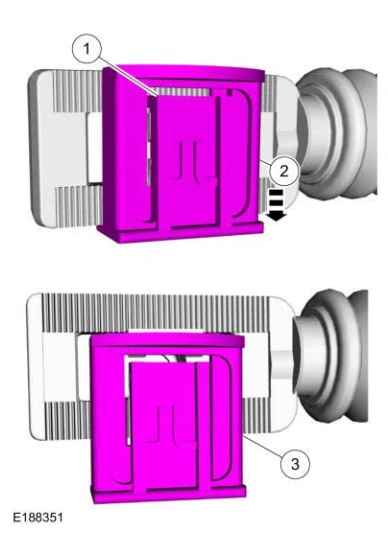

3. Lock tab shown open in illustration.

Selector Lever Cable Adjustment — original illustration 1, reference 9101Original colors & callouts · Select to enlarge

NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

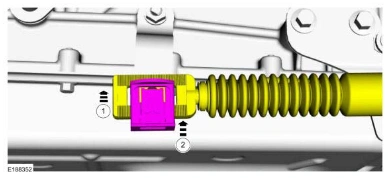

6. Connect and lock the adjuster.

1. With the adjuster lock tab released, connect the selector lever cable end to the manual control lever.

2. Push the lock tab upward to lock the transmission selector lever cable adjustment lock.

Selector Lever Cable Adjustment — original illustration 2, reference 9101Original colors & callouts · Select to enlarge

7. Verify the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in

Ford_Mustang_all_2015-2017.pdf · source reference 9101
