Selector Lever Assembly — Automatic Transmission External Controls · Reference 9103

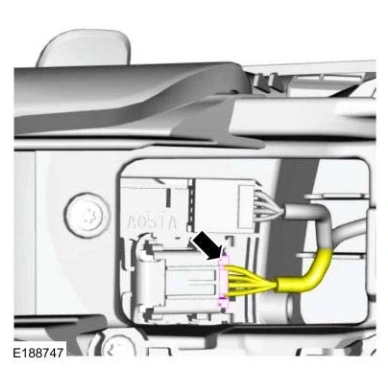

Disconnect the downshift paddle switch electrical connector.

Selector Lever Assembly — original illustration 1, reference 9103Original colors & callouts · Select to enlarge

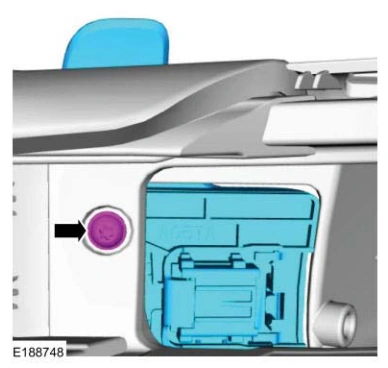

5. Remove the screw and the downshift paddle switch.

Selector Lever Assembly — original illustration 2, reference 9103Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > DOWNSHIFT PADDLE SWITCH > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > SELECTOR LEVER ASSEMBLY

Special Tool(s) / General Equipment

Interior Trim Remover
