Downshift Paddle Switch — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,102HTML edition
← Chapter contentsManual collection

REVERSE.

REMOVAL AND INSTALLATION > DOWNSHIFT PADDLE SWITCH > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the driver air bag. Refer to: Driver Airbag .

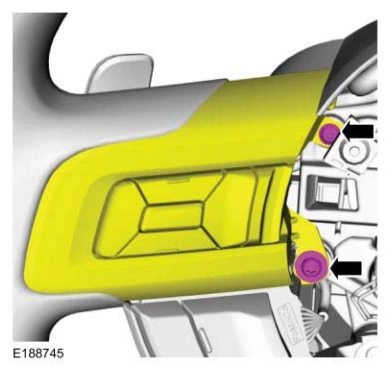

2. Remove the screws and position the LH speed control switch to access the electrical connector.

Downshift Paddle Switch — original illustration 1, reference 9102Original colors & callouts · Select to enlarge

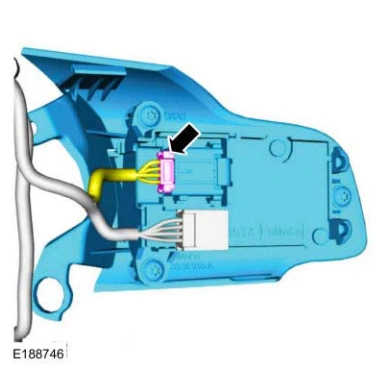

3. Disconnect the LH speed control switch electrical connector and remove the switch.

Downshift Paddle Switch — original illustration 2, reference 9102Original colors & callouts · Select to enlarge

4.
