Selector Lever Assembly — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,105HTML edition
← Chapter contentsManual collection
Selector Lever Assembly — original illustration 1, reference 9105Original colors & callouts · Select to enlarge

5. Disconnect the electrical connector.

Selector Lever Assembly — original illustration 2, reference 9105Original colors & callouts · Select to enlarge

6. Open the floor console lid.

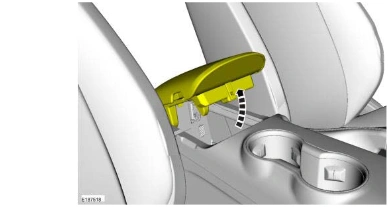

Selector Lever Assembly — original illustration 3, reference 9105Original colors & callouts · Select to enlarge

NOTE: If necessary, position the seat rearward.

7. Release the clips and remove the floor console RH side trim panel.

Ford_Mustang_all_2015-2017.pdf · source reference 9105
