Selector Lever Assembly — Removal

Automatic Transmission External Controls

Source configuration appliesSource reference 9,106HTML edition
← Chapter contentsManual collection

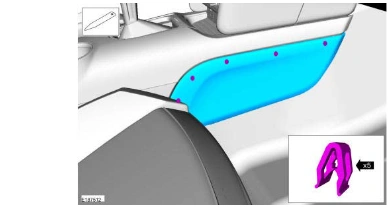

Use the General Equipment: Interior Trim Remover

Selector Lever Assembly — original illustration 1, reference 9106Original colors & callouts · Select to enlarge

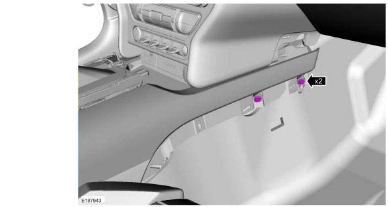

8. Remove the RH side front screws.

Selector Lever Assembly — original illustration 2, reference 9106Original colors & callouts · Select to enlarge

NOTE: If necessary, position the seat rearward.

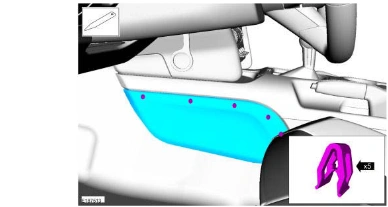

9. Release the clips and remove the LH side trim panel.

Use the General Equipment: Interior Trim Remover

Selector Lever Assembly — original illustration 3, reference 9106Original colors & callouts · Select to enlarge

10. Remove the LH side front screws.
