Selector Lever Cable Adjustment — Automatic Transmission External Controls · Reference 9100

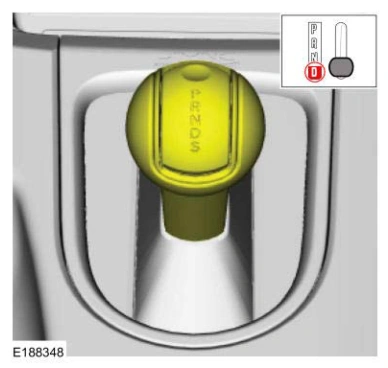

Selector Lever Cable Adjustment — original illustration 1, reference 9100Original colors & callouts · Select to enlarge

3. Disconnect the selector lever cable from the manual lever.

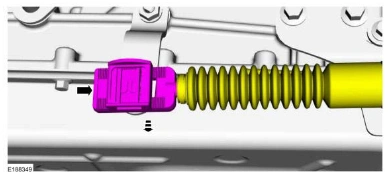

Selector Lever Cable Adjustment — original illustration 2, reference 9100Original colors & callouts · Select to enlarge

4. Position the manual lever in DRIVE.

Rotate the manual lever clockwise until it stops.

Rotate the manual lever counterclockwise 3 detents.

Selector Lever Cable Adjustment — original illustration 3, reference 9100Original colors & callouts · Select to enlarge

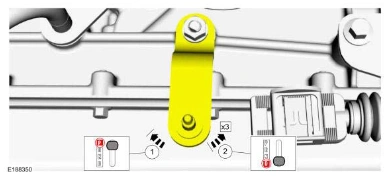

5. Unlock the adjuster.

1. Gently pry the latch up.

2. Push the lock tab to slide it down.
