brake lights are not operational. Before driving the vehicle, verify the brake lights are working.
This vehicle is equipped with a brake shift interlock actuator feature that prevents the selector lever from being moved out of the PARK position when the ignition is in the ON position until the brake pedal is applied. If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is applied:

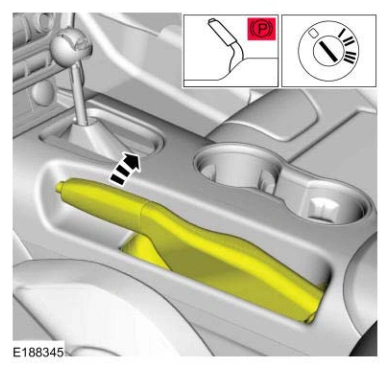

1. Fully apply the parking brake. Set the ignition switch to the 0 position (ignition off).
Brake Shift Interlock Actuator Manual Override — original illustration 1, reference 9098Original colors & callouts · Select to enlarge

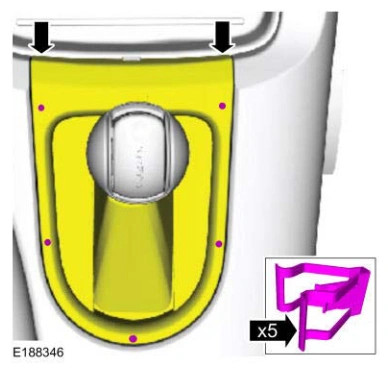

2. Starting from the front corners, carefully pry up the bezel and position it out of the way.
Brake Shift Interlock Actuator Manual Override — original illustration 2, reference 9098Original colors & callouts · Select to enlarge
3. Using a small screwdriver, push forward on the brake shift interlock actuator on the selector lever assembly, apply the brake pedal, press the button on the selector lever knob and move the selector lever into NEUTRAL.
