Selector Lever Cable — Installation — Automatic Transmission External Controls · Reference 9114

Selector Lever Cable — original illustration 1, reference 9114Original colors & callouts · Select to enlarge

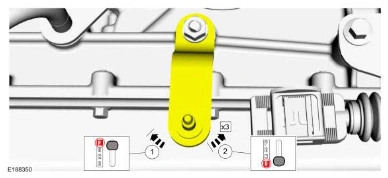

6. Position the manual lever in DRIVE.

1. Rotate the manual lever clockwise until it stops.

2. Rotate the manual lever counterclockwise 3 detents.

Selector Lever Cable — original illustration 2, reference 9114Original colors & callouts · Select to enlarge

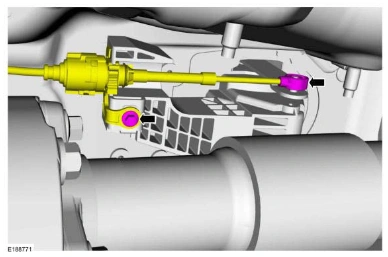

7. Unlock the adjuster.

1. Gently pry the latch up.

2. Push the lock tab to slide it down.

3. Lock tab shown open in illustration.

Ford_Mustang_all_2015-2017.pdf · source reference 9114
