Selector Lever Cable — Installation

Automatic Transmission External Controls

Source configuration appliesSource reference 9,115HTML edition
← Chapter contentsManual collection

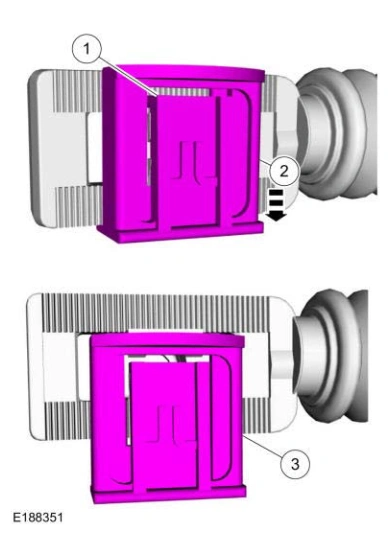

Selector Lever Cable — original illustration 1, reference 9115Original colors & callouts · Select to enlarge

NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

8. Connect and lock the adjuster.

1. With the adjuster lock tab released, connect the selector lever cable end to the manual control lever.

2. Push the lock tab upward to lock the transmission selector lever cable adjustment lock.

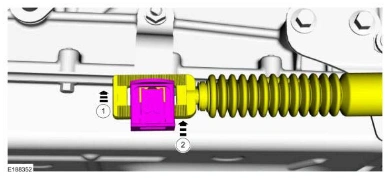

Selector Lever Cable — original illustration 2, reference 9115Original colors & callouts · Select to enlarge

9. Verify the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
