Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — Installation

Transmission Cooling

Source configuration appliesSource reference 9,394HTML edition
← Chapter contentsManual collection

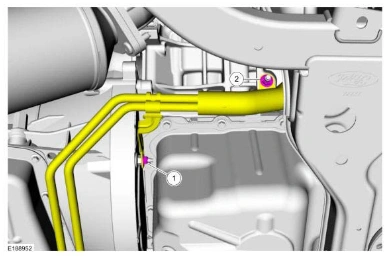

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 1, reference 9394Original colors & callouts · Select to enlarge

5. Connect the transmission fluid cooler tube fittings.

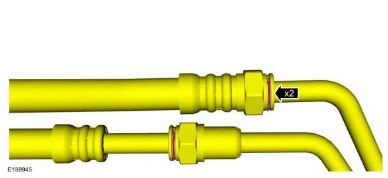

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 2, reference 9394Original colors & callouts · Select to enlarge

6. Install the transmission fluid cooler tube fittings secondary latches.

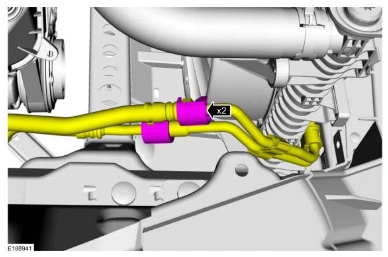

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 3, reference 9394Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 9394

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
