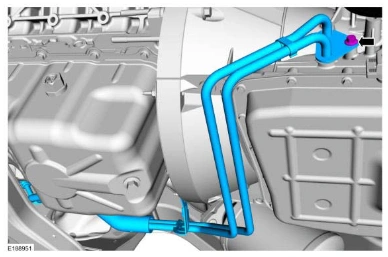

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 1, reference 9392Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 5.0L 32V

TI-VCT > INSTALLATION

1. If necessary, remove the transmission fluid cooler tubes backing rings and band seals from the transmission.

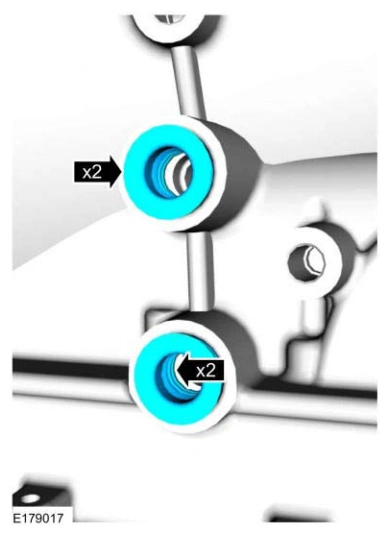

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 2, reference 9392Original colors & callouts · Select to enlarge

2. Lubricate the band seals and backing rings.

Backing ring (7J324).

Seal (7D285).

Material

: Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.)
