Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — Removal

Transmission Cooling

Source configuration appliesSource reference 9,390HTML edition
← Chapter contentsManual collection

Connect the transmission fluid cooler tube fittings.

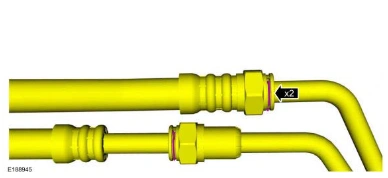

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 1, reference 9390Original colors & callouts · Select to enlarge

8. Install the transmission fluid cooler tube fittings secondary latches.

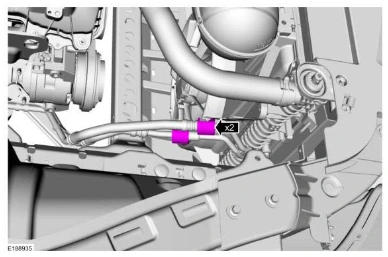

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 2, reference 9390Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 5.0L 32V

TI-VCT

Special Tool(s) / General Equipment

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 3, reference 9390Original colors & callouts · Select to enlarge

307-695 Tool, Quick Disconnect TKIT-2012C-FL TKIT-2012C-ROW TKIT-2012C-ROW2

Materials

Name

Specification

Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) XT-10-QLVC (U.S.)

MERCON® LVWSS-M2C938-A

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 5.0L 32V

TI-VCT > REMOVAL
