Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — Installation

Transmission Cooling

Source configuration appliesSource reference 9,393HTML edition
← Chapter contentsManual collection

(MERCON® LV) (WSS-M2C938-A)

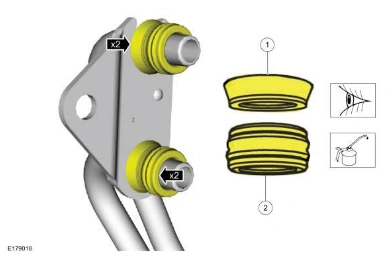

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 1, reference 9393Original colors & callouts · Select to enlarge

3. Position the transmission fluid cooler tubes in the vehicle, attach the transmission fluid cooler tubes to the transmission and install the bolt.

Torque

: 18 lb.ft (25 Nm)

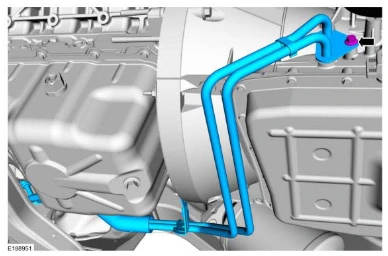

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 2, reference 9393Original colors & callouts · Select to enlarge

4. Install the nuts.

Install the transmission fluid cooler tubes bracket-to-transmission nut.

Torque

: 124 lb.in (14 Nm)

Install the transmission fluid cooler tubes bracket-to-engine mount nut.

Torque

: 35 lb.ft (48 Nm)
