Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — Removal

Transmission Cooling

Source configuration appliesSource reference 9,391HTML edition
← Chapter contentsManual collection

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Remove the transmission fluid cooler tube fittings secondary latches.

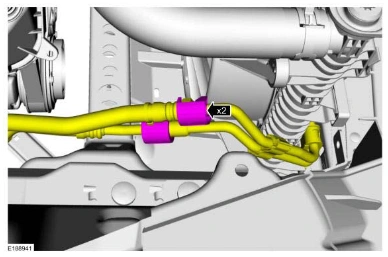

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 1, reference 9391Original colors & callouts · Select to enlarge

3. Using the special tool, disconnect the transmission fluid cooler tube fittings.

Use Special Service Tool: 307-695 Tool, Quick Disconnect.

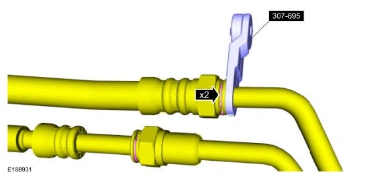

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 2, reference 9391Original colors & callouts · Select to enlarge

4. Remove the transmission fluid cooler tubes bracket-to-engine mount nut and the transmission fluid cooler tubes bracket-to-transmission nut.

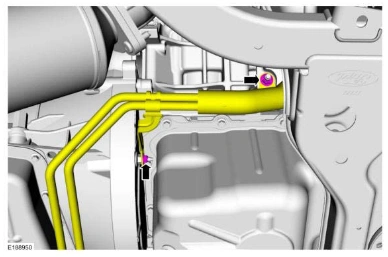

Transmission Fluid Cooler Tubes - 5.0L 32v Ti-VCT — original illustration 3, reference 9391Original colors & callouts · Select to enlarge

5. Remove the bolt and the transmission fluid cooler tubes.
