Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — Installation

Transmission Cooling

Source configuration appliesSource reference 9,389HTML edition
← Chapter contentsManual collection

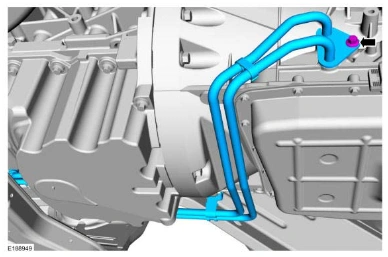

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 1, reference 9389Original colors & callouts · Select to enlarge

4. Install the LH catalyst monitor sensor. Refer to: CATALYST MONITOR SENSOR .

5. Install the transmission fluid cooler tubes bracket-to-transmission nut.

Torque

: 124 lb.in (14 Nm)

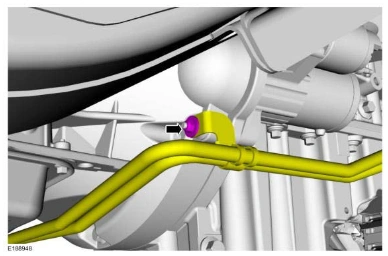

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 2, reference 9389Original colors & callouts · Select to enlarge

6. Install the transmission fluid cooler tubes bracket-to-engine mount nut.

Torque

: 35 lb.ft (48 Nm)

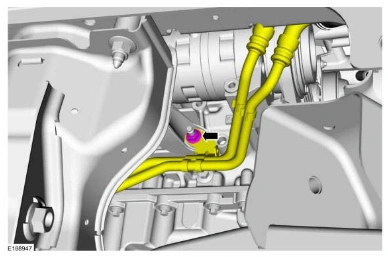

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 3, reference 9389Original colors & callouts · Select to enlarge

7.
