Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — Installation

Transmission Cooling

Source configuration appliesSource reference 9,387HTML edition
← Chapter contentsManual collection
Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 1, reference 9387Original colors & callouts · Select to enlarge

6. Remove the LH catalyst monitor sensor. Refer to: CATALYST MONITOR SENSOR .

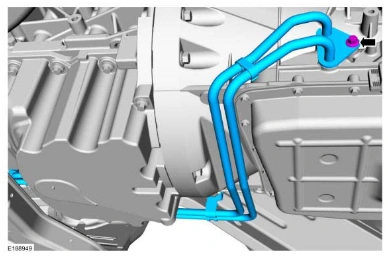

7. Remove the bolt and the transmission fluid cooler tubes.

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 2, reference 9387Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 3.7L

DURATEC (227KW 301PS) > INSTALLATION

1. If necessary, remove the transmission fluid cooler tubes backing rings and band seals from the transmission.
