Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — Installation

Transmission Cooling

Source configuration appliesSource reference 9,384HTML edition
← Chapter contentsManual collection

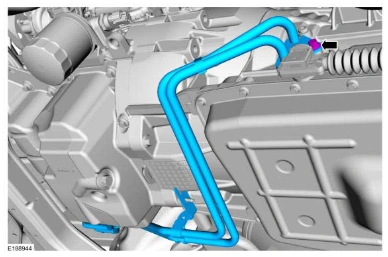

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 1, reference 9384Original colors & callouts · Select to enlarge

4. Install the transmission fluid cooler tubes bracket-to-transmission nut.

Torque

: 124 lb.in (14 Nm)

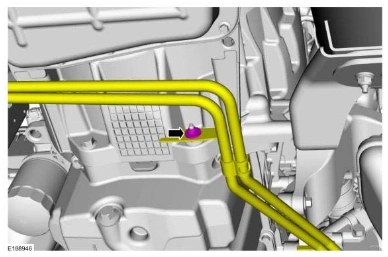

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 2, reference 9384Original colors & callouts · Select to enlarge

5. Install the transmission fluid cooler tubes bracket-to-engine mount nut.

Torque

: 35 lb.ft (48 Nm)

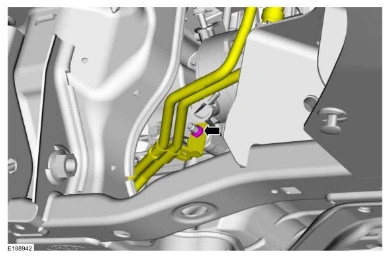

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 3, reference 9384Original colors & callouts · Select to enlarge

6. Connect the transmission fluid cooler tube fittings.

Ford_Mustang_all_2015-2017.pdf · source reference 9384
