Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — Removal

Transmission Cooling

Source configuration appliesSource reference 9,381HTML edition
← Chapter contentsManual collection

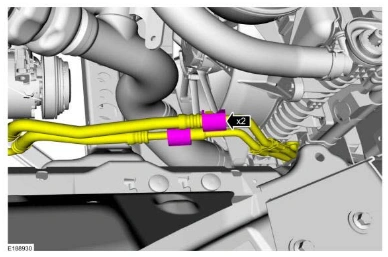

2. Remove the transmission fluid cooler tube fittings secondary latches.

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 1, reference 9381Original colors & callouts · Select to enlarge

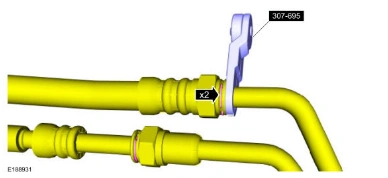

3. Using the special tool, disconnect the transmission fluid cooler tube fittings.

Use Special Service Tool: 307-695 Tool, Quick Disconnect.

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 2, reference 9381Original colors & callouts · Select to enlarge

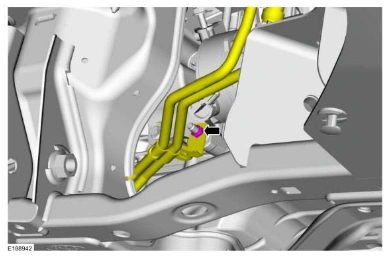

4. Remove the transmission fluid cooler tubes bracket-to-engine mount nut.

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 3, reference 9381Original colors & callouts · Select to enlarge

5. Remove the transmission fluid cooler tubes bracket-to-transmission nut.
