Transmission Fluid Cooler - 5.0L 32v Ti-VCT — Removal

Transmission Cooling

Source configuration appliesSource reference 9,379HTML edition
← Chapter contentsManual collection

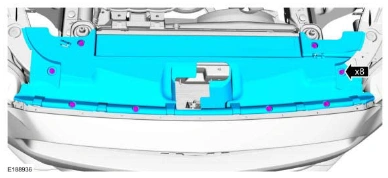

Transmission Fluid Cooler - 5.0L 32v Ti-VCT — original illustration 1, reference 9379Original colors & callouts · Select to enlarge

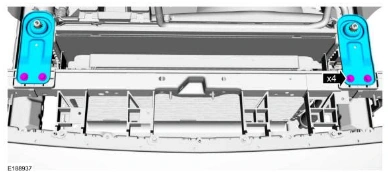

5. Remove the bolts and the radiator brackets.

Torque

: 97 lb.in (11 Nm)

Transmission Fluid Cooler - 5.0L 32v Ti-VCT — original illustration 2, reference 9379Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

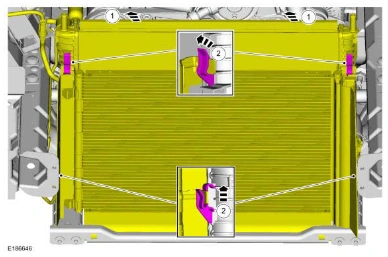

6. Position the A/C condenser aside.

Position the radiator towards the engine.

Release the upper tabs and position the A/C condenser aside.

Transmission Fluid Cooler - 5.0L 32v Ti-VCT — original illustration 3, reference 9379Original colors & callouts · Select to enlarge

7. Remove the bolts and the transmission fluid cooler.

Torque

: 53 lb.in (6 Nm)
