Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — Removal

Transmission Cooling

Source configuration appliesSource reference 9,380HTML edition
← Chapter contentsManual collection

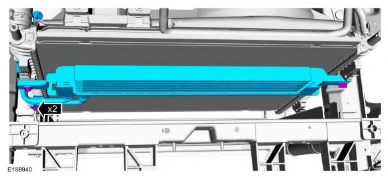

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 1, reference 9380Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER - 5.0L 32V TI-VCT

> INSTALLATION

1. To install, reverse the removal procedure.

2. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 2.3L

ECOBOOST (201KW 273PS)

Special Tool(s) / General Equipment

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 2, reference 9380Original colors & callouts · Select to enlarge

307-695 Tool, Quick Disconnect TKIT-2012C-FL TKIT-2012C-ROW TKIT-2012C-ROW2

Materials

Name

Specification

Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) XT-10-QLVC (U.S.)

MERCON® LVWSS-M2C938-A

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 2.3L

ECOBOOST (201KW 273PS) > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

Ford_Mustang_all_2015-2017.pdf · source reference 9380

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
