Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — Installation

Transmission Cooling

Source configuration appliesSource reference 9,382HTML edition

← Chapter contents Manual collection

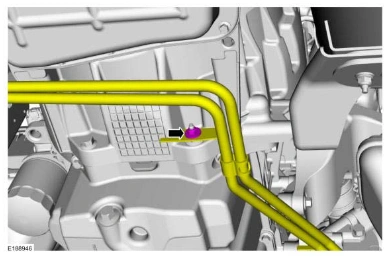

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 1, reference 9382Original colors & callouts · Select to enlarge

6. Remove the bolt and the transmission fluid cooler tubes.

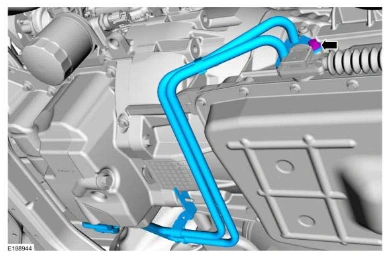

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 2, reference 9382Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 2.3L

ECOBOOST (201KW 273PS) > INSTALLATION

1. If necessary, remove the transmission fluid cooler tubes backing rings and band seals from the transmission.
