Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — Removal — Transmission Cooling · Reference 9385

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 1, reference 9385Original colors & callouts · Select to enlarge

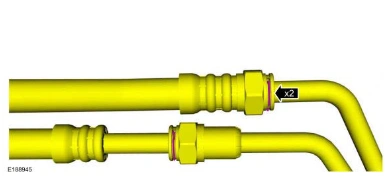

7. Install the transmission fluid cooler tube fittings secondary latches.

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 2, reference 9385Original colors & callouts · Select to enlarge

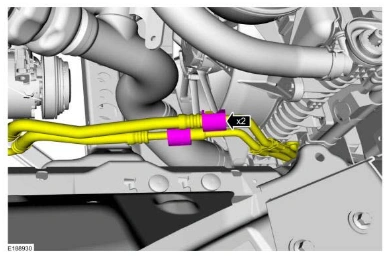

8. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 3.7L

DURATEC (227KW 301PS)

Special Tool(s) / General Equipment

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 3, reference 9385Original colors & callouts · Select to enlarge	307-695 Tool, Quick Disconnect TKIT-2012C-FL TKIT-2012C-ROW TKIT-2012C-ROW2

Materials

Name	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) XT-10-QLVC (U.S.)	MERCON® LVWSS-M2C938-A

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER TUBES - 3.7L
