DURATEC (227KW 301PS) > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

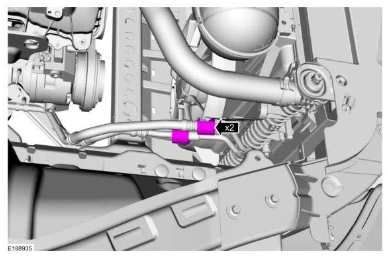

2. Remove the transmission fluid cooler tube fittings secondary latches.

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 1, reference 9386Original colors & callouts · Select to enlarge

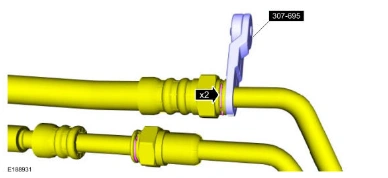

3. Using the special tool, disconnect the transmission fluid cooler tube fittings.

Use Special Service Tool: 307-695 Tool, Quick Disconnect.

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 2, reference 9386Original colors & callouts · Select to enlarge

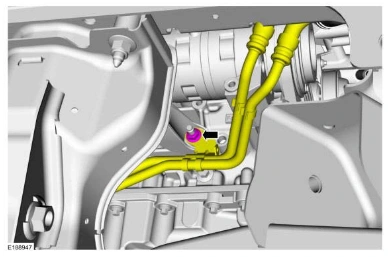

4. Remove the transmission fluid cooler tubes bracket-to-engine mount nut.

Transmission Fluid Cooler Tubes - 3.7L Duratec (227kW 301PS) — original illustration 3, reference 9386Original colors & callouts · Select to enlarge

5. Remove the transmission fluid cooler tubes bracket-to-transmission nut.
