Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — Installation

Transmission Cooling

Source configuration appliesSource reference 9,383HTML edition
← Chapter contentsManual collection

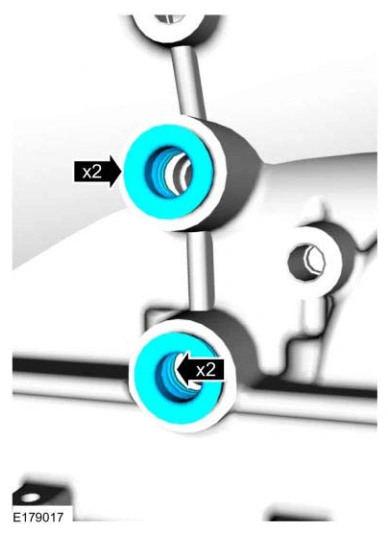

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 1, reference 9383Original colors & callouts · Select to enlarge

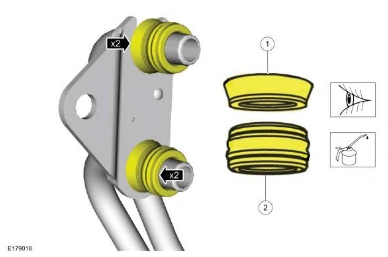

2. Lubricate the band seals and backing rings.

Backing ring (7J324).

Seal (7D285).

Material

: Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON® LV) (WSS-M2C938-A)

Transmission Fluid Cooler Tubes - 2.3L EcoBoost (201kW 273PS) — original illustration 2, reference 9383Original colors & callouts · Select to enlarge

3. Position the transmission fluid cooler tubes in the vehicle, attach the transmission fluid cooler tubes to the transmission and install the bolt.

Torque

: 18 lb.ft (25 Nm)
