Transmission Fluid Cooler - 5.0L 32v Ti-VCT — Removal — Transmission Cooling · Reference 9377

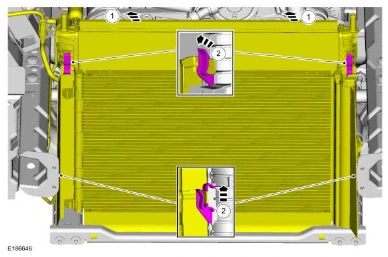

Transmission Fluid Cooler - 5.0L 32v Ti-VCT — original illustration 1, reference 9377Original colors & callouts · Select to enlarge

7. Remove the bolts and the transmission fluid cooler.

Torque

: 53 lb.in (6 Nm)

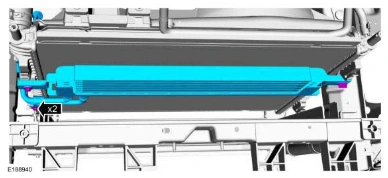

Transmission Fluid Cooler - 5.0L 32v Ti-VCT — original illustration 2, reference 9377Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER - 3.7L DURATEC

(227KW 301PS) > INSTALLATION

1. To install, reverse the removal procedure.

2. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER - 5.0L 32V TI-VCT

Special Tool(s) / General Equipment

Transmission Fluid Cooler - 5.0L 32v Ti-VCT — original illustration 3, reference 9377Original colors & callouts · Select to enlarge	307-695 Tool, Quick Disconnect TKIT-2012C-FL TKIT-2012C-ROW TKIT-2012C-ROW2
