Transmi Ssi On Flui D Cooler - 2. 3L EcoBoost (231kW/314PS) — Installation

Transmission Cooling

Source configuration appliesSource reference 9,374HTML edition
← Chapter contentsManual collection

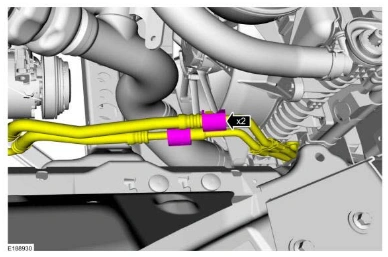

Transmi Ssi On Flui D Cooler - 2. 3L EcoBoost (231kW/314PS) — original illustration 1, reference 9374Original colors & callouts · Select to enlarge

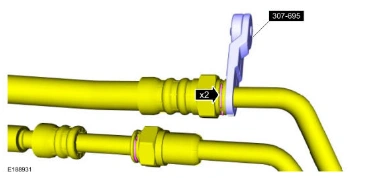

2. Using the special tool, disconnect the transmission fluid cooler tube fittings.

Use Special Service Tool: 307-695 Tool, Quick Disconnect.

Transmi Ssi On Flui D Cooler - 2. 3L EcoBoost (231kW/314PS) — original illustration 2, reference 9374Original colors & callouts · Select to enlarge

3. Remove the A/C condenser. Refer to: Condenser - 2.3L EcoBoost (201kW/273PS) .

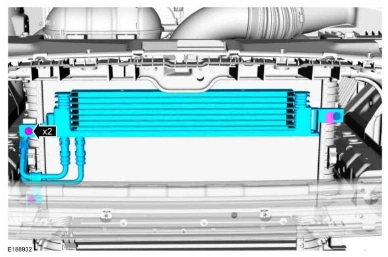

4. Remove the bolts and the transmission fluid cooler.

Torque

: 53 lb.in (6 Nm)

Transmi Ssi On Flui D Cooler - 2. 3L EcoBoost (231kW/314PS) — original illustration 3, reference 9374Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER - 2.3L ECOBOOST

(231KW/314PS) > INSTALLATION

1.
