Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — Removal

Transmission Cooling

Source configuration appliesSource reference 9,375HTML edition
← Chapter contentsManual collection

To install, reverse the removal procedure.

2. Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER - 3.7L DURATEC

(227KW 301PS)

Special Tool(s) / General Equipment

Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — original illustration 1, reference 9375Original colors & callouts · Select to enlarge

307-695 Tool, Quick Disconnect TKIT-2012C-FL TKIT-2012C-ROW TKIT-2012C-ROW2

REMOVAL AND INSTALLATION > TRANSMISSION FLUID COOLER - 3.7L DURATEC

(227KW 301PS) > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

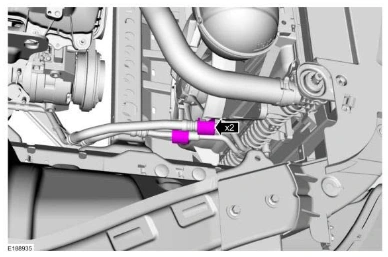

1. Remove the transmission fluid cooler tube secondary latches.

Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — original illustration 2, reference 9375Original colors & callouts · Select to enlarge

2. Using the special tool, disconnect the transmission fluid cooler tube fittings.

Use Special Service Tool: 307-695 Tool, Quick Disconnect.

Ford_Mustang_all_2015-2017.pdf · source reference 9375
