Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — Removal

Transmission Cooling

Source configuration appliesSource reference 9,376HTML edition
← Chapter contentsManual collection

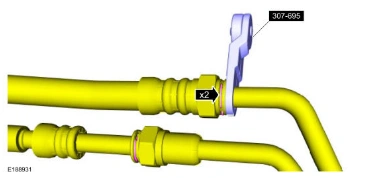

Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — original illustration 1, reference 9376Original colors & callouts · Select to enlarge

3. Remove the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 3.7L Duratec (227kW/301PS).

4. Remove the pushpins and the radiator sight shield.

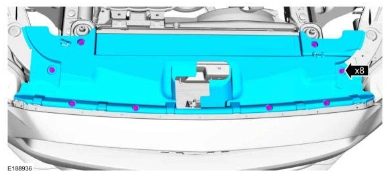

Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — original illustration 2, reference 9376Original colors & callouts · Select to enlarge

5. Remove the bolts and the radiator brackets.

Torque

: 97 lb.in (11 Nm)

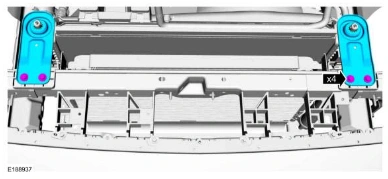

Transmission Fluid Cooler - 3.7L Duratec (227kW 301PS) — original illustration 3, reference 9376Original colors & callouts · Select to enlarge

NOTE: Front bumper removed for clarity.

6. Position the A/C condenser aside.

Position the radiator towards the engine.

Release the upper tabs and position the A/C condenser aside.
