Front Seats — 2016 workshop reference 1053

Z12 CHECK THE PASSENGER SEAT CUSHION BLOWER CIRCUITS FOR AN OPEN

Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265C-8		C3040-3
C3265C-7		C3040-4

Are the resistances less than 3 ohms?

Yes	GO to Z13
No	REPAIR the circuit in question. GO to Z22

Z13 CHECK THE PASSENGER SEAT CUSHION BLOWER RESISTANCE

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3040-3, Component Side Front Seats — original illustration 1, reference 1053Original colors & callouts · Select to enlarge		C3040-4, Component Side Front Seats — original illustration 2, reference 1053Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3040-3, Component Side

Front Seats — original illustration 1, reference 1053Original colors & callouts · Select to enlarge

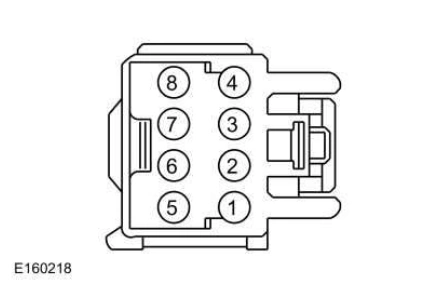

C3040-4, Component Side

Front Seats — original illustration 2, reference 1053Original colors & callouts · Select to enlarge

Is the resistance between 4,000 and 10,000 ohms?

Yes	GO to Z14
No	INSTALL a new passenger seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to Z22

Z14 CHECK THE PASSENGER SEAT CUSHION BLOWER SPEED CONTROL RESISTANCE

NOTE: The ohmmeter must be connected with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3040-7, Component Side Front Seats — original illustration 3, reference 1053Original colors & callouts · Select to enlarge		C3040-4, Component Side Front Seats — original illustration 4, reference 1053Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3040-7, Component Side

Front Seats — original illustration 3, reference 1053Original colors & callouts · Select to enlarge

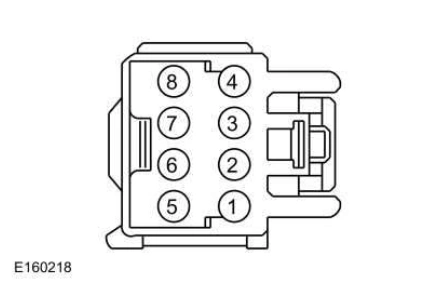

C3040-4, Component Side

Front Seats — original illustration 4, reference 1053Original colors & callouts · Select to enlarge
