Is the resistance between 4,000 and 10,000 ohms?

Yes	GO to AC14
No	GO to AC13

AC13 CHECK THE BLOWER RESISTANCE

Disconnect: Passenger Seat Cushion Blower Motor C3040.

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3040-3, Component Side Front Seats — original illustration 1, reference 1079Original colors & callouts · Select to enlarge		C3040-4, Component Side Front Seats — original illustration 2, reference 1079Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3040-3, Component Side

Front Seats — original illustration 1, reference 1079Original colors & callouts · Select to enlarge

C3040-4, Component Side

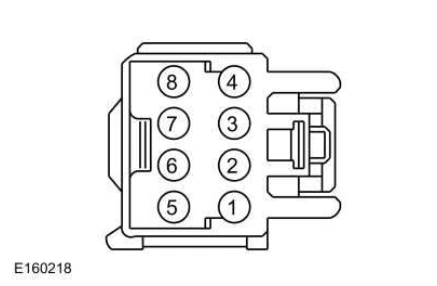

Front Seats — original illustration 2, reference 1079Original colors & callouts · Select to enlarge

Is the resistance between 4,000 and 10,000 ohms?

Yes	REPAIR the circuit in question. GO to AC36
No	INSTALL a new passenger seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to AC36

AC14 CHECK THE BLOWER SPEED CONTROL AND CIRCUIT RESISTANCE

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 7 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265C-3		C3265C-7

Is the resistance between 240K and 400K ohms?

Yes	GO to AC16
No	GO to AC15

AC15 CHECK THE BLOWER SPEED CONTROL RESISTANCE

Disconnect: Passenger Seat Cushion Blower Motor C3040.

NOTE: The ohmmeter must be connected with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead
