Front Seat Backrest Release Handle — 2016 workshop reference 1141

Front Seat Backrest Release Handle — original illustration 1, reference 1141Original colors & callouts · Select to enlarge

4. If equipped with a GT 350 Recaro seat. Remove the upper backrest foam.

1. Pull the upper backrest foam away from the release handle.

2. Remove the upper backrest foam.

Front Seat Backrest Release Handle — original illustration 2, reference 1141Original colors & callouts · Select to enlarge

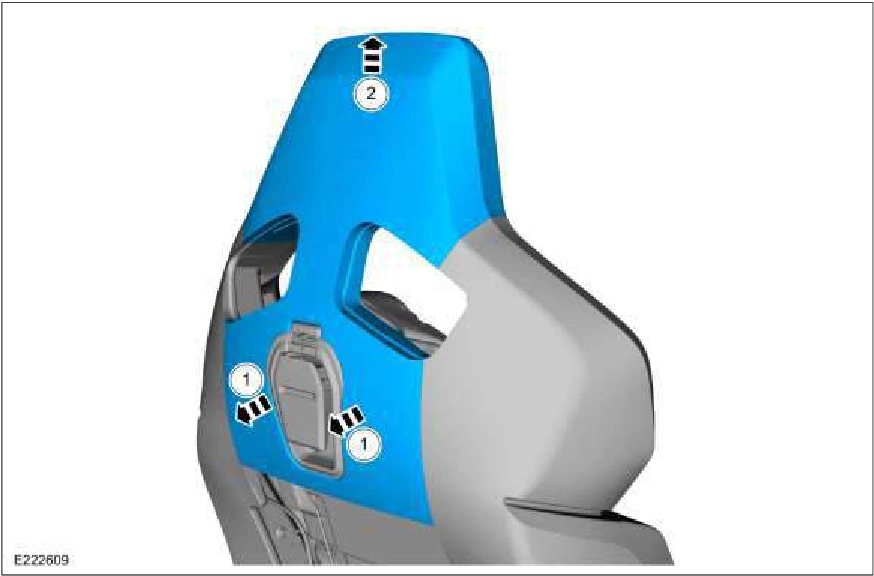

5. NOTE: If equipped, make sure that the safety belt guide strap is in the same position during installation.

Remove the seat backrest foam.

1. Pull the backrest foam from the backrest.

2. Lift the backrest foam from the backrest.
