Front Seat Backrest Release Handle — 2016 workshop reference 1142

Front Seat Backrest Release Handle — original illustration 1, reference 1142Original colors & callouts · Select to enlarge

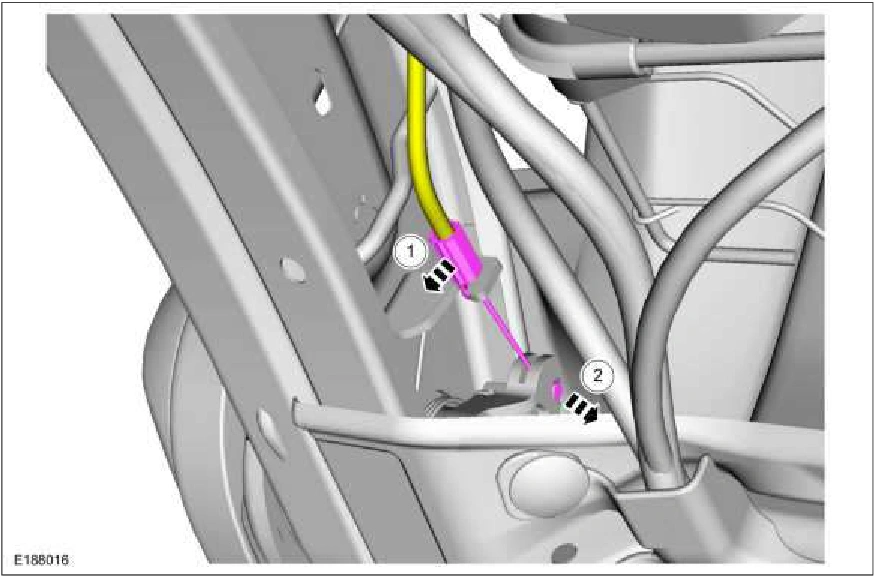

6. Position the release handle cable.

1. Detach the cable conduit.

2. Disconnect the cable from the recline mechanism.

Front Seat Backrest Release Handle — original illustration 2, reference 1142Original colors & callouts · Select to enlarge

7. Remove the release handle front bolts.
