Front Seat Climate Control Module [SCME]

501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Removal

NOTE: LHD passenger seat shown, RHD passenger seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

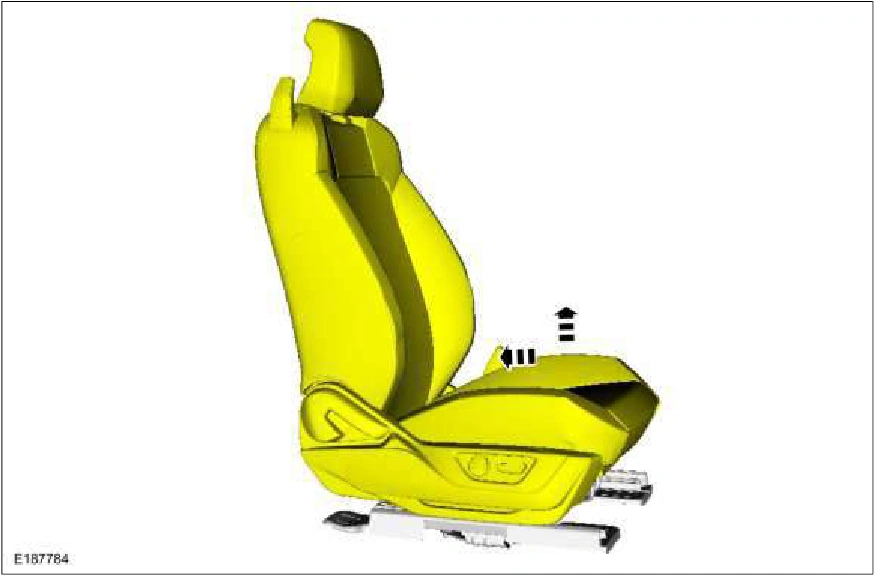

2. Position the front passenger seat to the full upward and full rearward positions.

Front Seat Climate Control Module [SCME] — original illustration 1, reference 1144Original colors & callouts · Select to enlarge

3. Remove the screws and position the SCME aside.

Source reference 1144
