Front Seat Control Switch

501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Base Part Number: 14A701

Removal

NOTE: LHD driver seat shown, all others similar.

NOTE: Removal steps in this procedure may contain installation details.

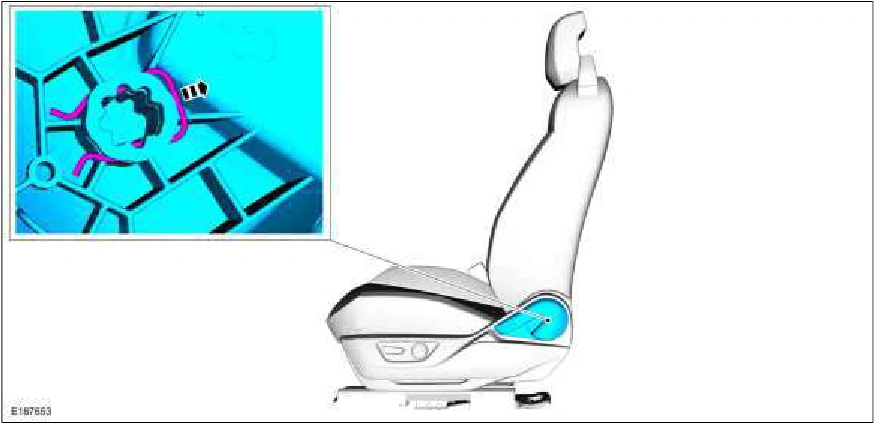

1. Release the retaining clip and remove the front seat recline handle.

Front Seat Control Switch — original illustration 1, reference 1147Original colors & callouts · Select to enlarge

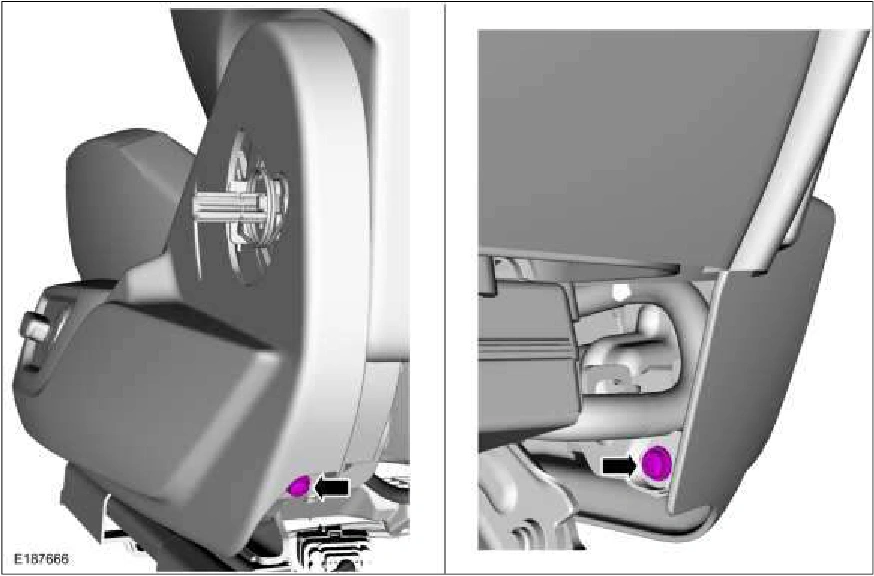

2. Remove the side shield screws.

Front Seat Control Switch — original illustration 2, reference 1147Original colors & callouts · Select to enlarge
