Front Seat Control Switch — 2016 workshop reference 1148

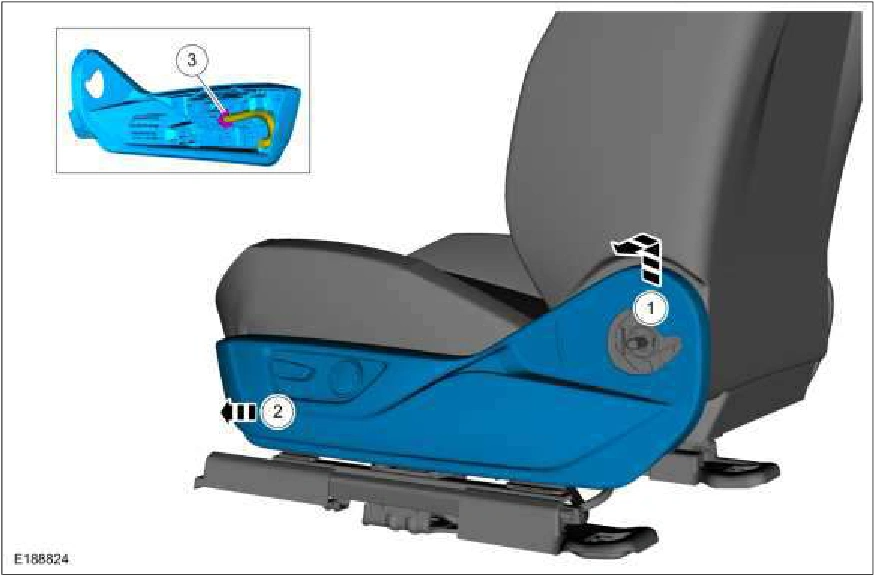

Remove the side shield.

1. Lift up on the rear of the side shield and pull outward.

2. Push the side shield forward.

3. Disconnect the electrical connector.

Front Seat Control Switch — original illustration 1, reference 1148Original colors & callouts · Select to enlarge

4. Remove the seat control switch knob.

Front Seat Control Switch — original illustration 2, reference 1148Original colors & callouts · Select to enlarge

5. Remove the screws and the seat control switch.
