Front Seat Climate Control Module [SCME] — 2016 workshop reference 1145

Front Seat Climate Control Module [SCME] — original illustration 1, reference 1145Original colors & callouts · Select to enlarge

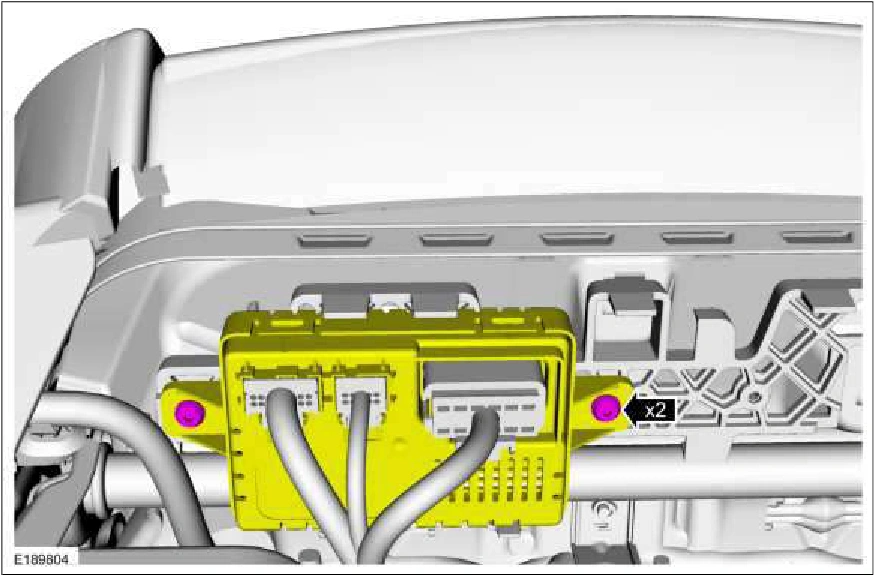

4. Remove the SCME.

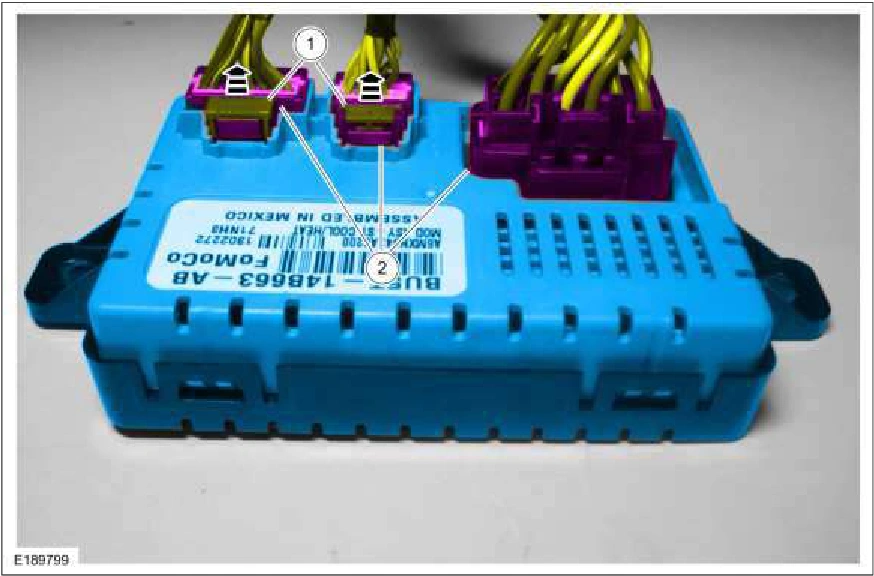

1. Release the locking wedges.

2. Disconnect the electrical connectors.

Front Seat Climate Control Module [SCME] — original illustration 2, reference 1145Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the SCME following the on-screen instructions.
