Door Latch Lubrication

501-14 Handles, Locks, Latches and Entry Systems

2016 MustangReference 1,422 / 6,619HTML edition
← Chapter contentsProcedure contents

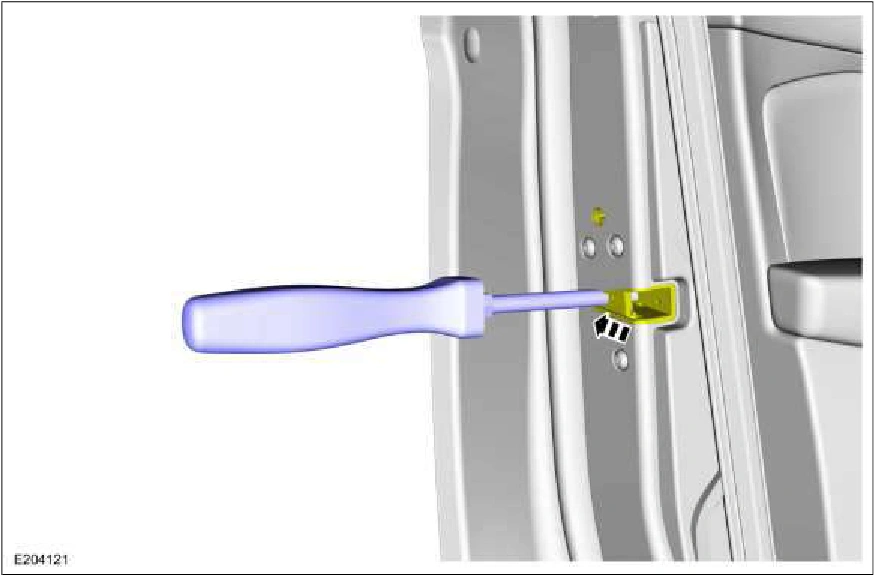

Door Latch Lubrication — original illustration 1, reference 1422Original colors & callouts · Select to enlarge

3. NOTICE: Do not over-lubricate the latch. Using excessive grease may damage the internal lock

motor.

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds. Material : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

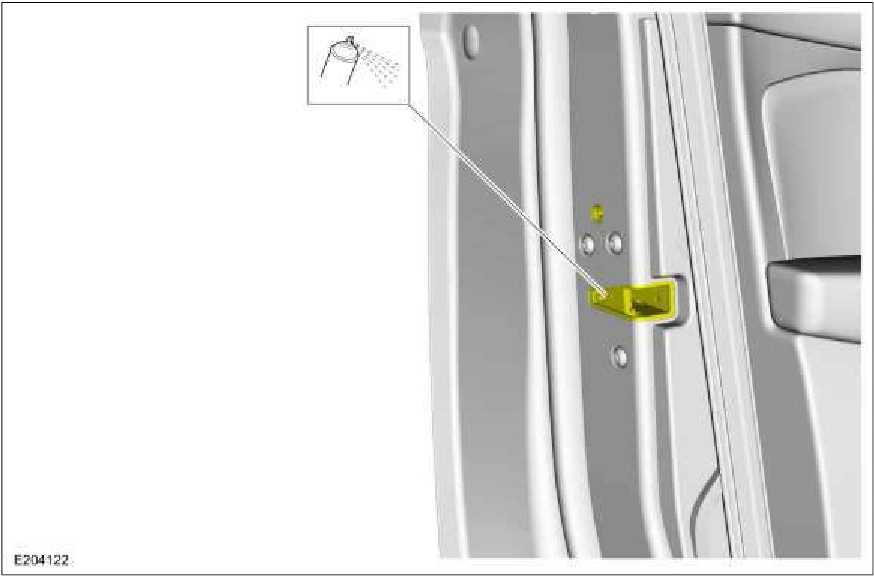

Door Latch Lubrication — original illustration 2, reference 1422Original colors & callouts · Select to enlarge

4. Open the latch using the exterior door handle.
