Convertible Top Headliner — 2016 workshop reference 1607

Convertible Top Headliner — original illustration 1, reference 1607Original colors & callouts · Select to enlarge

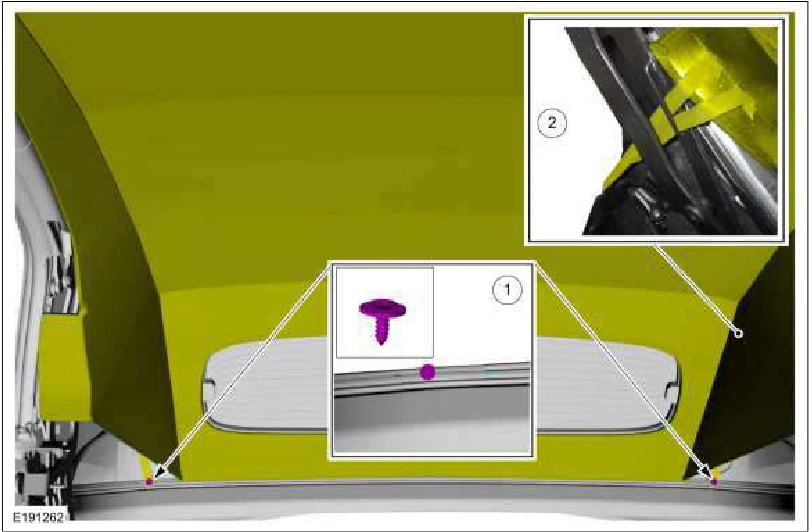

5. Remove the convertible top headliner nylon fabric strap from the floating bow.

1. Remove the convertible top headliner nylon fabric strap retainers from the floating bow. Torque : 62 lb.in (7 Nm)

2. NOTE: During installation, route the nylon fabric strap through the frame as it was removed.

LH side shown, RH side similar.

On both sides, route the nylon fabric strap through the frame.

Convertible Top Headliner — original illustration 2, reference 1607Original colors & callouts · Select to enlarge

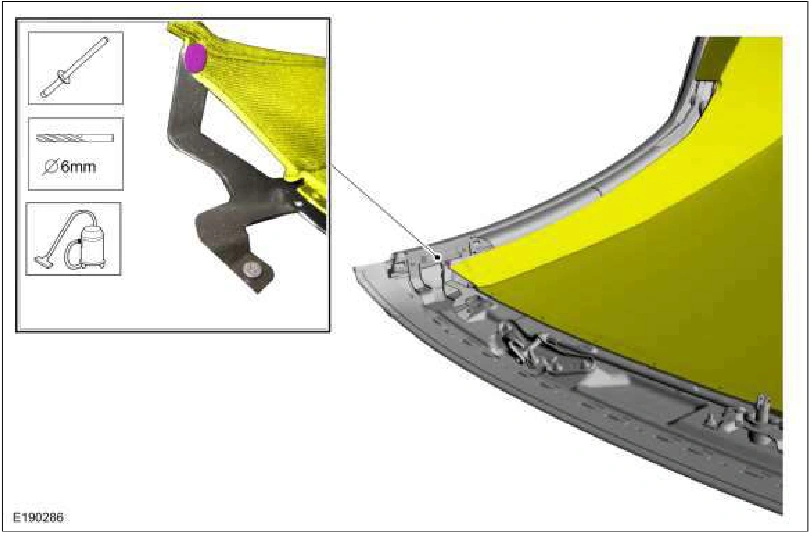

6. NOTE: Fold the convertible top headliner down between each cross bow after rivet removal to expose the next cross bow.

All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill out the cross bow retaining rivets.

1. NOTE: Inset view is from above with convertible top material removed for clarity.

Remove the rivets from cross bow 1.
