Convertible Top Headliner — 2016 workshop reference 1608

Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun

2. Remove the rivets from cross bow 2.

3. Remove the rivets from cross bow 3.

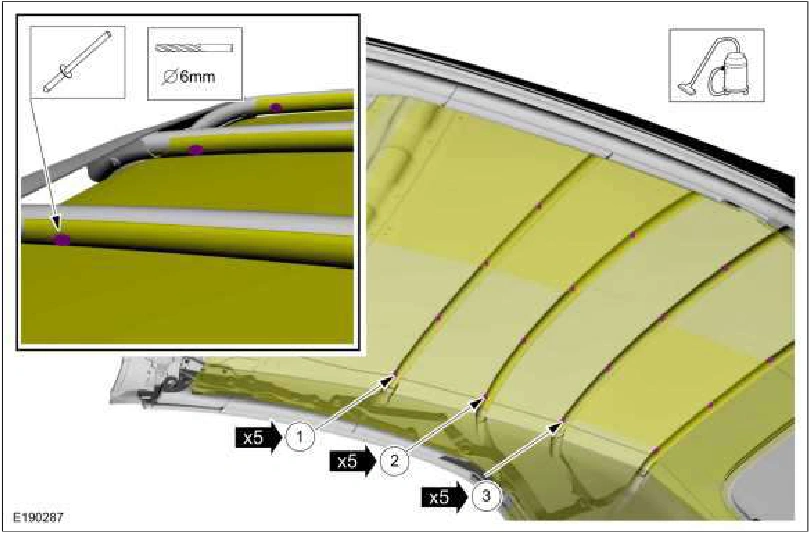

Convertible Top Headliner — original illustration 1, reference 1608Original colors & callouts · Select to enlarge

7. Remove the headliner from cross bow 4.

1. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill out the rivets from cross bow 4. Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun

2. NOTE: The nylon fabric strap has 2 sided tape holding it to cross bow 4 to aid in positioning during installation.

The nylon fabric strap can remain routed over cross bow 4 after pushing through the convertible top headliner.

Pull the end of the nylon fabric strap from the cross bar and push through the convertible top headliner to release the convertible top headliner from cross bow 4.
