Convertible Top Headliner — 2016 workshop reference 1611

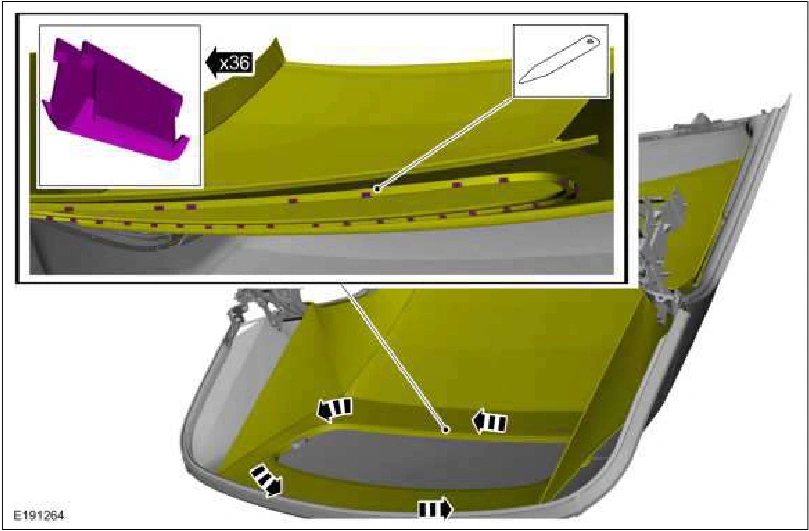

Convertible Top Headliner — original illustration 1, reference 1611Original colors & callouts · Select to enlarge

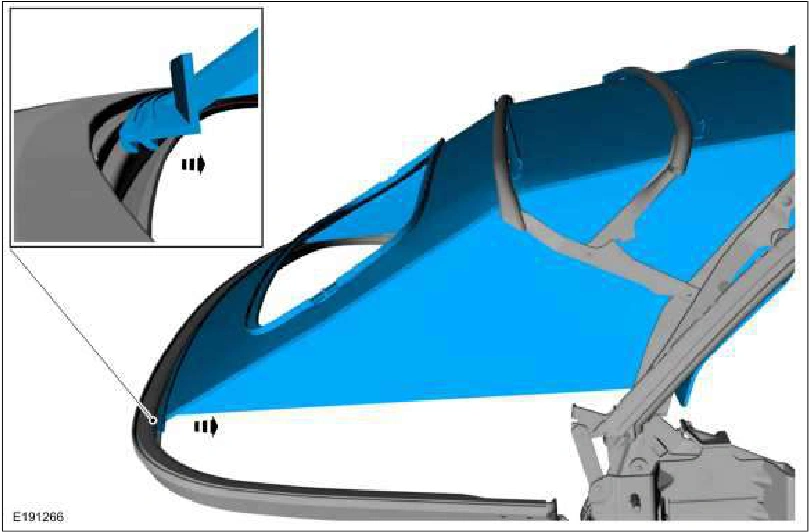

10. NOTE: View is from outside the vehicle with the convertible top material removed for clarity.

From inside the vehicle, pull the headliner straight out of the floating bow to remove.

Convertible Top Headliner — original illustration 2, reference 1611Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1611
