Convertible Top Material — 2016 workshop reference 1614

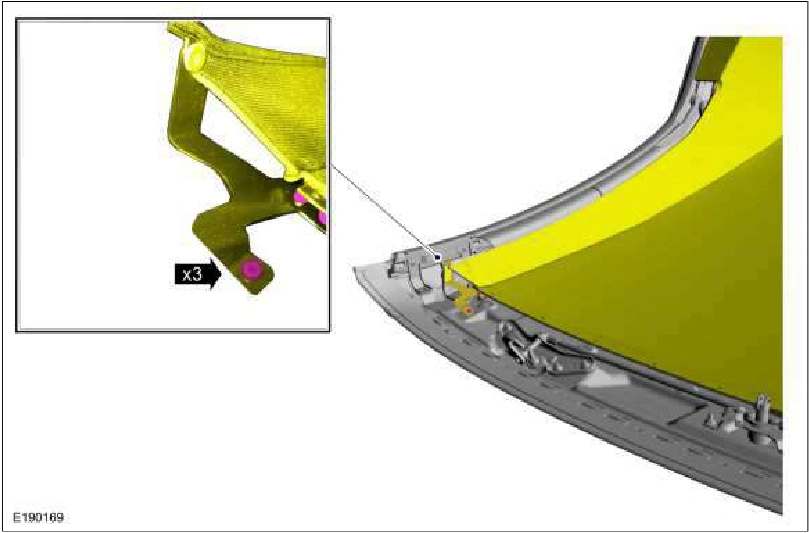

Convertible Top Material — original illustration 1, reference 1614Original colors & callouts · Select to enlarge

6. NOTE: RH side shown, LH side similar.

If any shims are present, note the position for installation.

On both sides, remove the convertible top front panel side weatherstrip and bracket assembly.

1. Mark the convertible top front panel side weatherstrip bracket assembly at the retainers for installation reference.

2. Remove the convertible top front panel side weatherstrip and bracket assembly retainers and remove the weatherstrip/bracket assembly.

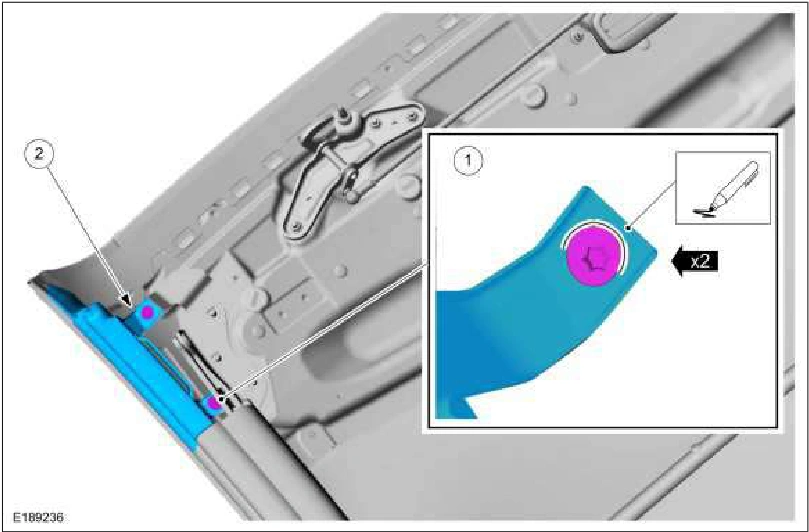

Convertible Top Material — original illustration 2, reference 1614Original colors & callouts · Select to enlarge

7. NOTE: Fold the convertible top headliner down between each cross bow after rivet removal to expose the next cross bow.

All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill out the cross bow retaining rivets.

1. NOTE: Inset view is from above with convertible top material removed for clarity.

Remove the rivets from cross bow 1.

Source reference 1614
