Convertible Top Material — 2016 workshop reference 1616

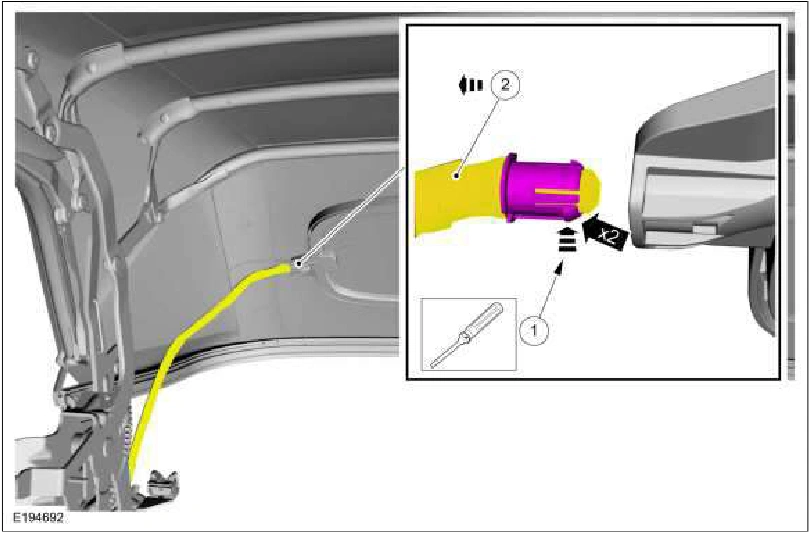

Convertible Top Material — original illustration 1, reference 1616Original colors & callouts · Select to enlarge

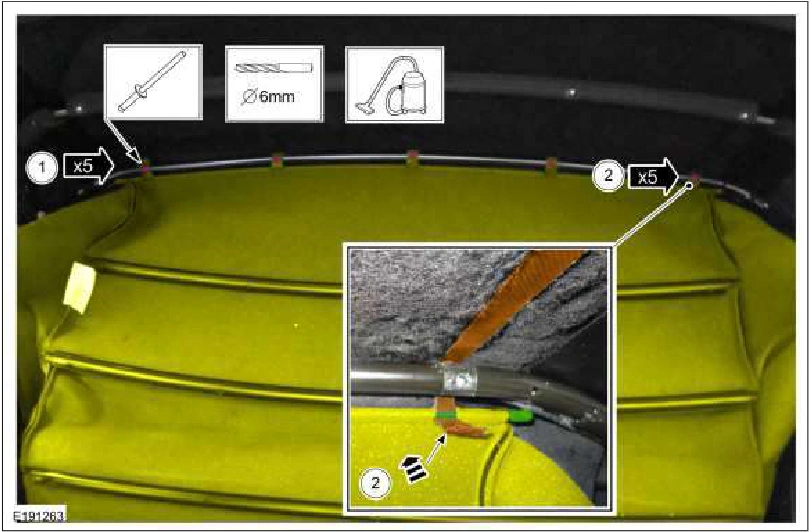

10. Remove the headliner from cross bow 4.

1. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill out the rivets from cross bow 4. Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun

2. NOTE: The nylon fabric strap has 2 sided tape holding it to cross bow 4 to aid in positioning during installation.

The nylon fabric strap can remain routed over cross bow 4 after pushing through the convertible top headliner.

Pull the end of the nylon fabric strap from the cross bar and push through the convertible top headliner to release the convertible top headliner from cross bow 4.

Convertible Top Material — original illustration 2, reference 1616Original colors & callouts · Select to enlarge

11. NOTE: All rivet, shavings or pieces must be removed from all cross bows and the vehicle interior. Rivet ends left in any cross bow may result in a rattle condition.

Source reference 1616
