2016 workshop · Body & Paint

Convertible Top Material

501-18 Convertible Top

2016 MustangConvertibleReference 1,618 / 6,619HTML edition
← Chapter contentsProcedure contents
Convertible Top Material — original illustration 1, reference 1618Original colors & callouts · Select to enlarge

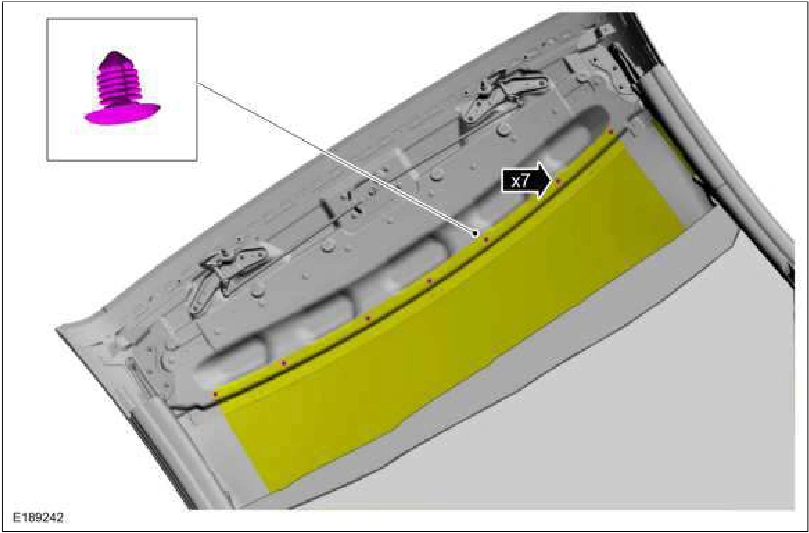

13. Remove the convertible top material push pins at the back of the convertible top front panel.

Convertible Top Material — original illustration 2, reference 1618Original colors & callouts · Select to enlarge

14. NOTE: The convertible top material to crossbow retaining flaps are attached to the crossbows with 2 sided tape to align the holes for the same rivets that were removed for the headliner. During installation, make sure to line up the holes. A standard 2 sided tape can be used to ease alignment retention during installation.

Pull the convertible top material to crossbow retaining flap from the 2 sided tape at each crossbow.
