Convertible Top Material — 2016 workshop reference 1621

Convertible Top Material — original illustration 1, reference 1621Original colors & callouts · Select to enlarge

19. On both sides. Refer to: Convertible Top Rear Panel Lower Weatherstrip (501-18 Convertible Top, Removal and Installation).

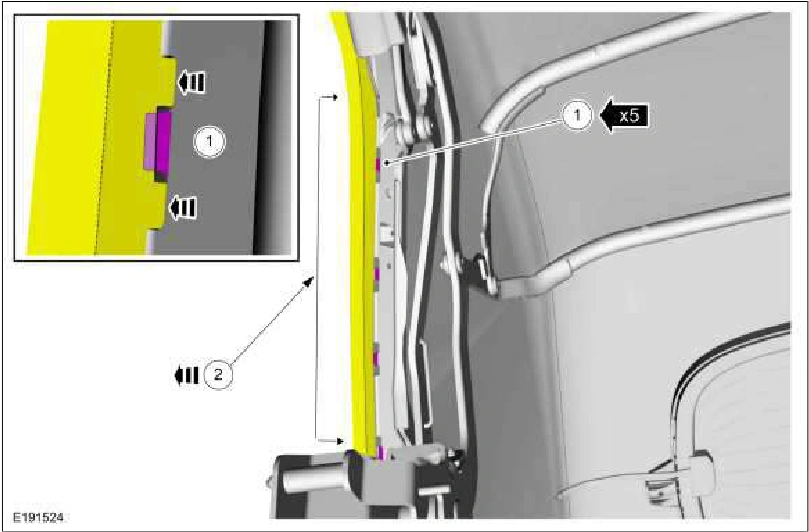

20. NOTE: RH side shown, LH side similar.

On both sides, release the convertible top material from the frame under the removed convertible top rear panel lower weatherstrip.

1. Release the convertible top material edge trim from the frame as indicated in all 5 locations under the removed convertible top rear panel lower weatherstrip.

2. Pull the convertible top material out to fully release from the frame.

Convertible Top Material — original illustration 2, reference 1621Original colors & callouts · Select to enlarge

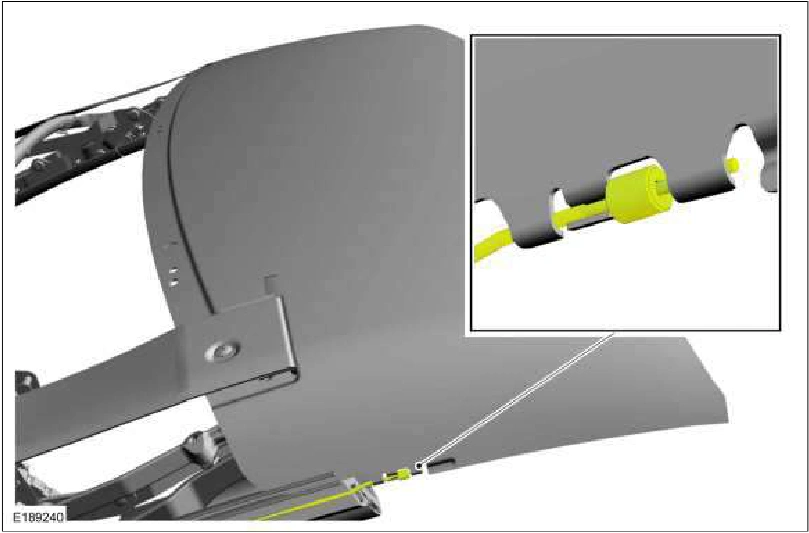

21. NOTE: RH side shown, LH side similar.

On both sides, pull the convertible top material back to access the back of the convertible top tension cable.
