Convertible Top Material

501-18 Convertible Top

2016 MustangConvertibleReference 1,622 / 6,619HTML edition
← Chapter contentsProcedure contents

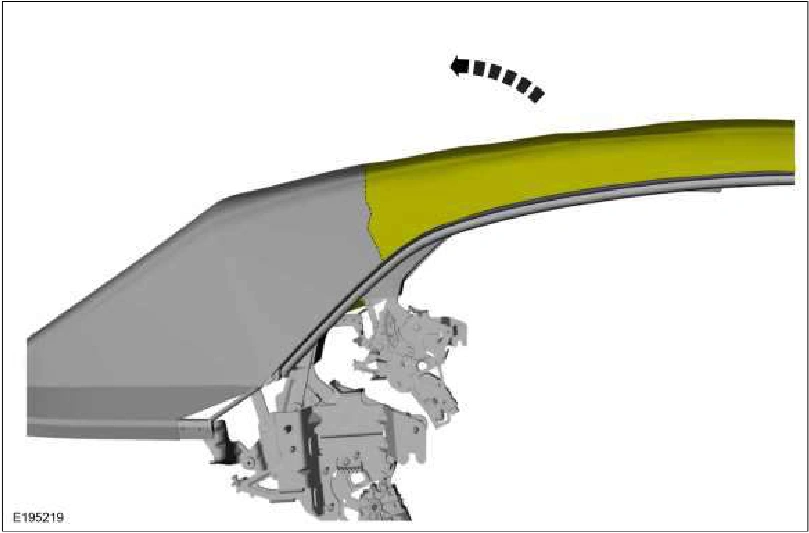

Convertible Top Material — original illustration 1, reference 1622Original colors & callouts · Select to enlarge

22. NOTE: RH side shown, LH side similar.

NOTE: Make sure to note the routing of the tension cable through the convertible top material for installation.

On both sides, leaving the convertible top tension cable attached to the frame, pull the front of the convertible top tension cable out of the convertible top material.

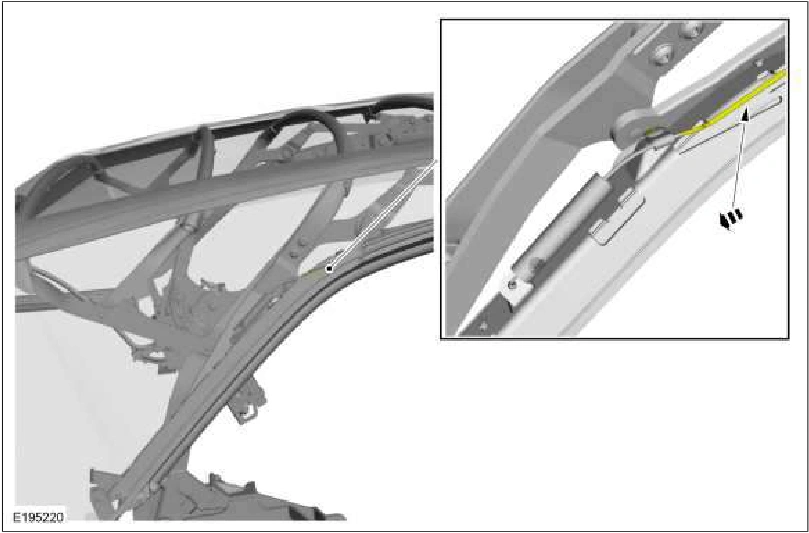

Convertible Top Material — original illustration 2, reference 1622Original colors & callouts · Select to enlarge

23. NOTE: Make sure to remove the convertible top material retaining clips from the floating bow. The convertible top material retaining clips must be placed on the convertible top material in the proper locations when installing.

RH side shown, LH side similar.

Pull the convertible top material out of the floating bow to remove.

Source reference 1622
