15. NOTE: During installation, route the convertible top tension cords and nylon fabric straps through the frame exactly as they were removed.
All rivet shavings must be removed from the vehicle and convertible top assembly.
RH side shown, LH side similar.

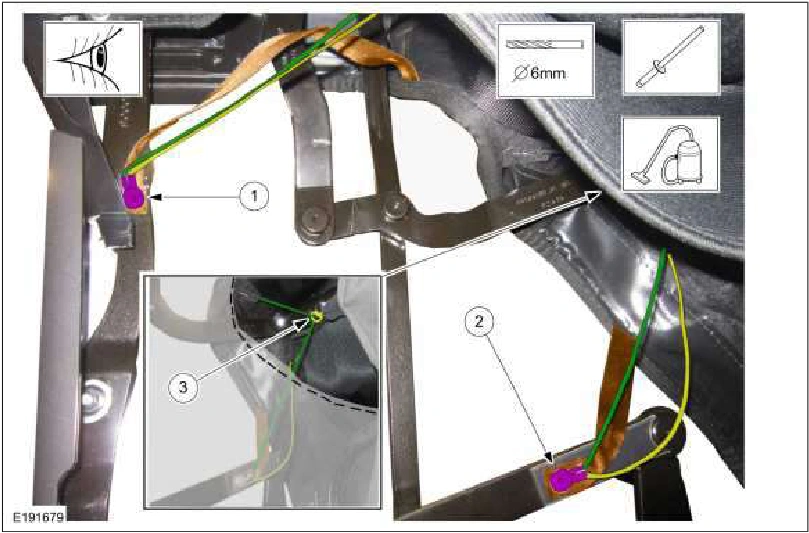

On both sides, disconnect the convertible top tension cords and nylon fabric straps from the frame assembly.
1. Drill out the rivets to the front set of tension cords at the front side of the frame. Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun
2. Drill out the rivets to the second set of tension cords at the center side of the frame.
3. NOTE: Do not drill out the D-ring retaining rivet.
Route the tension cord through the D-ring.

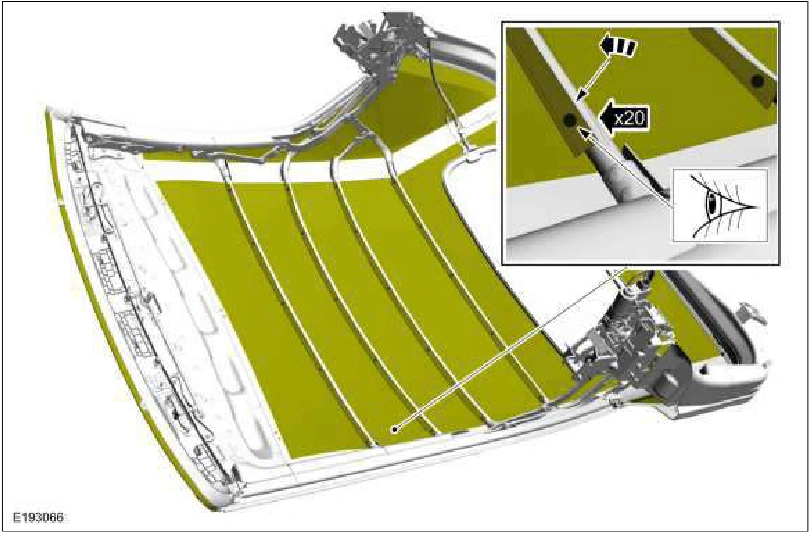

16. Disconnect the convertible top material from the front underside of the convertible top front panel.
1. Pull the convertible top material backward and down to release from the convertible top front panel clips.
2. On both sides, pull the convertible top material from the double sided tape securing the material to the
