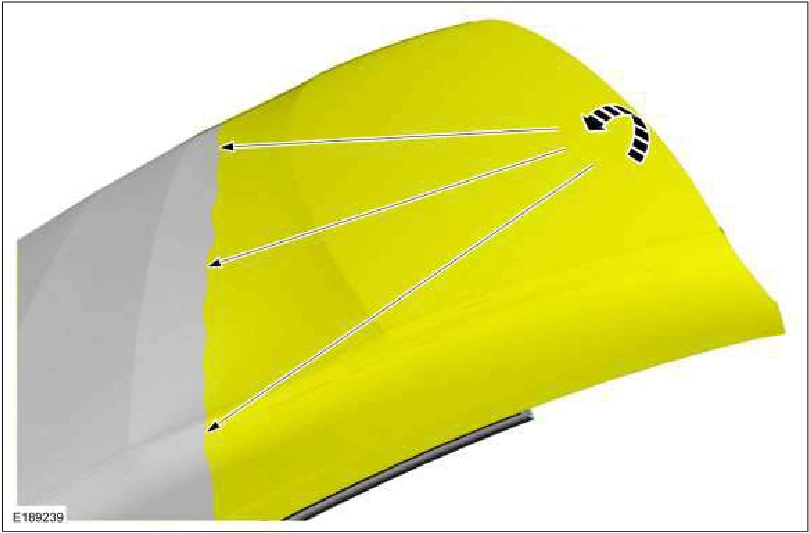

3. Roll the convertible top material forward and up over the convertible top front panel.

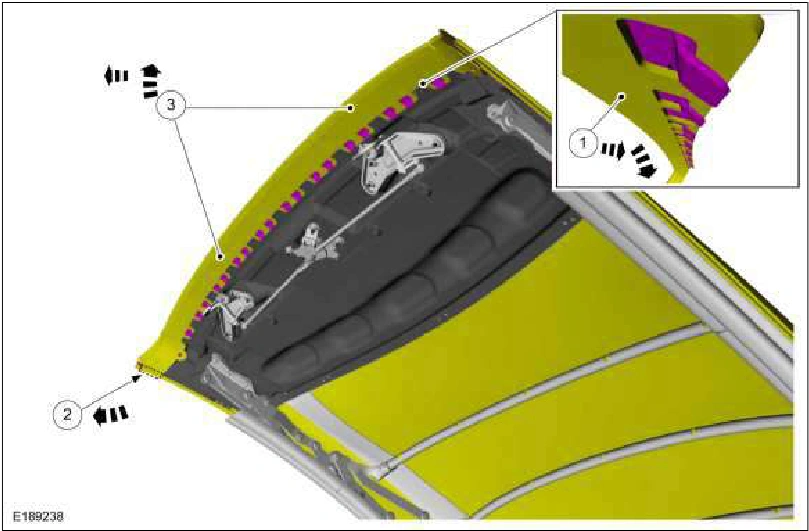

17. Fold the front of the convertible top material back to the first crossbow to expose the convertible top tension cable ends at the convertible top front panel.
18. NOTE: RH side shown, LH side similar.
If the convertible top material is to be reinstalled a draw string can be attached to the convertible top tension cable and left in the convertible top material for pulling the convertible top tension cable back into the convertible top material during installation.
On both sides, disconnect the convertible top tension cable from the convertible top front panel.
