Convertible Top Motor — 2016 workshop reference 1625

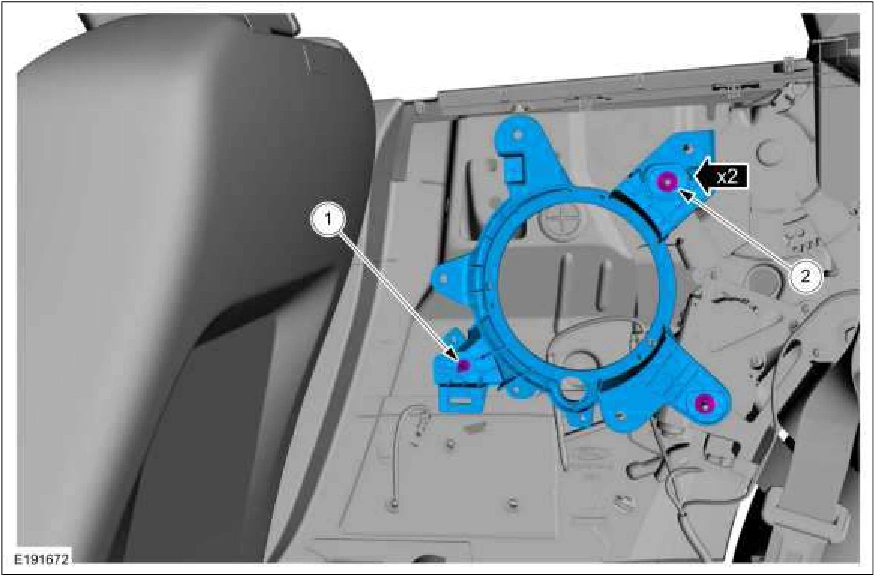

Convertible Top Motor — original illustration 1, reference 1625Original colors & callouts · Select to enlarge

4. NOTE: RH side shown, LH side similar.

Disconnect the harness connectors and position harness aside.

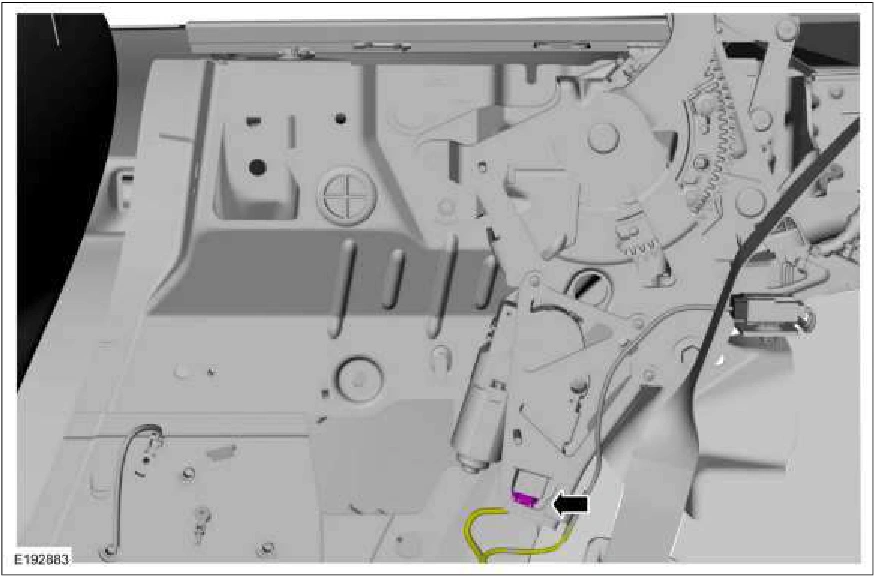

Convertible Top Motor — original illustration 2, reference 1625Original colors & callouts · Select to enlarge

5. NOTE: LH side shown, RH side similar.

Remove the motor guard bracket retainers and position aside. Torque : 25 lb.in (2.8 Nm)
