Convertible Top Motor — 2016 workshop reference 1626

Convertible Top Motor — original illustration 1, reference 1626Original colors & callouts · Select to enlarge

6. NOTE: LH side shown, RH side similar.

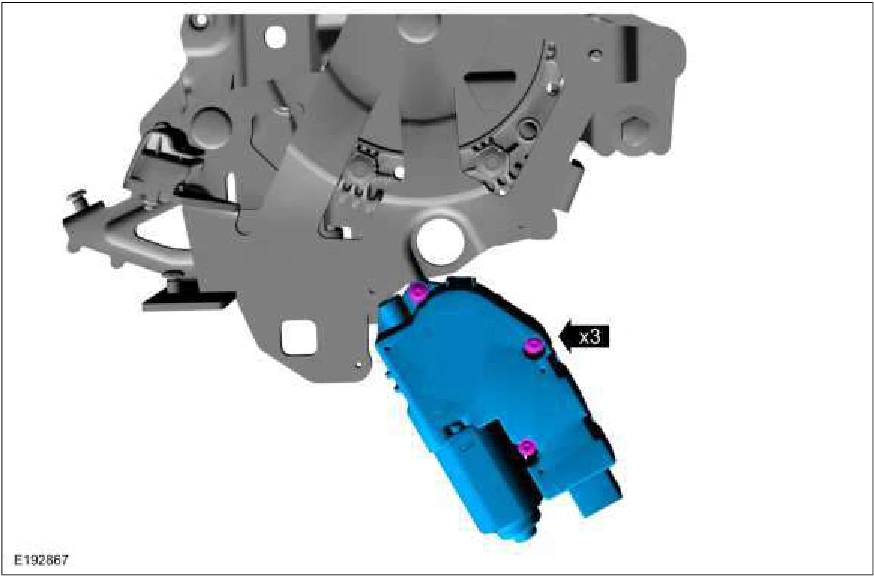

Remove the convertible top motor. Torque : 106 lb.in (12 Nm)

Convertible Top Motor — original illustration 2, reference 1626Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. To initialize the motors, fully close and latch the convertible top and reopen fully.
